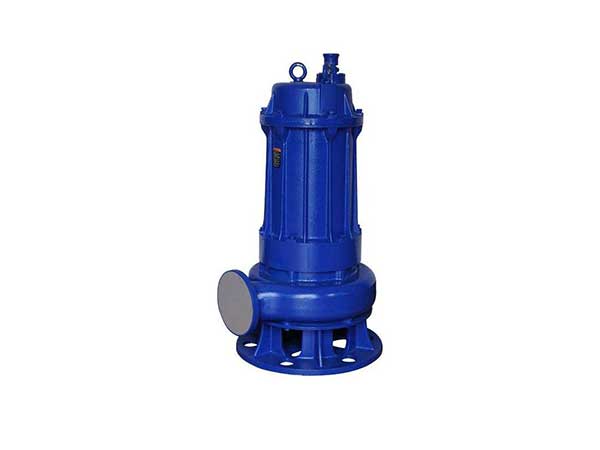

WQ Series

WQ Series

MOTOR
  • 2-Pole Dual Voltage Asynchronous Motor.
  • Continuous Operation, S1 Duty.
  • Protection Class : IPX8
  • Insulation Class : F
  • Efficiency Class : IE2
  • Standard voltage
  • Single Phase : 220-230V AC (1.1kW – 2.2kW)
  • Three Phase : : 220-230V / 380-415V AC
OPERATING RANGE
  • Flow : Up to 400 m3/hr
  • Head : Up to 46m
  • Liquid Temperature. : Up to + 40 deg. C
  • Ambient Temperature. : + 40 deg. C
  • Power Range : 0.55kW – 22kW
  • Speed : 1450 - 2900 RPM
  • Solid Passage :Up to 65mm
  • Installation Depth : Up to 5m.
  • Installation Depth :4 - 10.
APPLICATIONS
  • Industry, Agriculture, Mining, Construction, Municipal, Environmental. Industrial ETP/STP Water Transfer
  • Draining water containing particles such as short fibers, paper scraps etc. and soft solid such as muddy water, Dirty water, Domestic Wastewater, Sewage, Manure etc.
MATERIAL OF CONSTRUCTION
  • Pump Casing : Cast Iron
  • Impeller (Double Channel) : Cast Iron
  • Shaft : Stainless Steel
  • Double Mechanical seal
FEATURES
  • Large Power Submersible sewage pump, the standard flange outlet.
  • Double channel impeller, good flowing capacity, excellent hydraulic performance.
  • Stainless Steel Shaft extension & carbide double side mechanical sealing.
